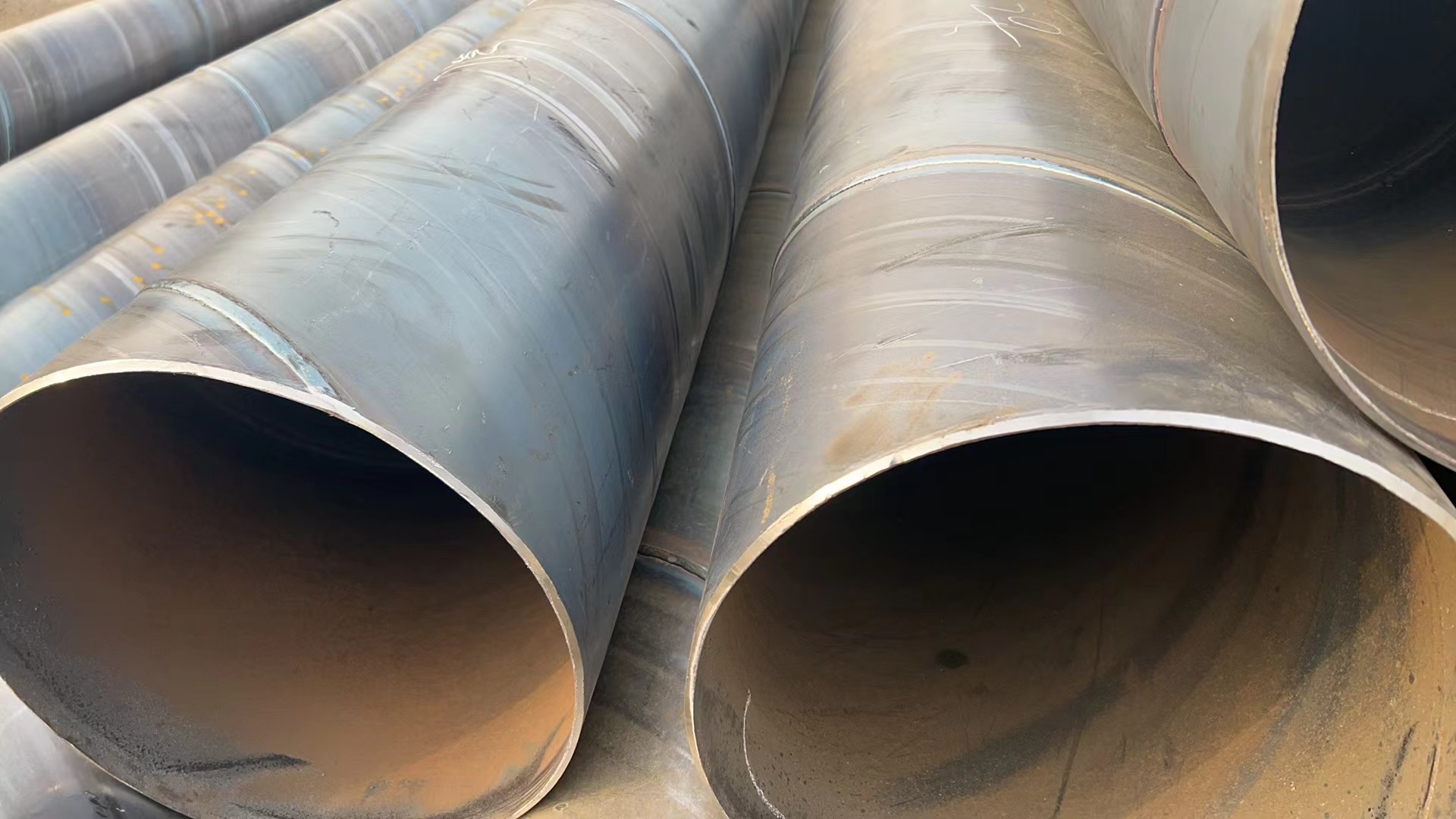

螺旋钢管的尺寸和标准试验压力1
规定外径D Specified outside diameter |
规定壁厚t mm Specified thickness |
最低试验压力
|
||||||||||
钢 级
|
||||||||||||
in
|
mm
|
L210 |
L245
(B) |
L290
(X42) |
L320
(X46) |
L360 |
L390
(X56) |
L415
(X60) |
L450
(X65) |
L485
(X70) |
L555
(X80) |
|
8-5/8
|
219.1
|
5.0
7.0 10.0 13.0 |
5.8 |
6.7
9.4 13.4 17.4 |
9.9
13.9 19.9 20.7 |
11.0
15.3 20.7 20.7 |
12.3
17.3 20.7 20.7 |
13.4
18.7 20.7 20.7 |
14.2
19.9 20.7 20.7 |
15.4
20.7 20.7 20.7 |
16.6
20.7 20.7 20.7 |
19.0
20.7 20.7 20.7 |
9-5/8
|
244.5
|
5.0
7.0 10.0 13.0 |
5.2
7.2 10.3 13.4 |
6.0
8.4 12.0 15.6 |
10.1
14.1 20.2 20.7 |
11.1
15.6 20.7 20.7 |
12.5
17.5 20.7 20.7 |
13.6
19.0 20.7 20.7 |
14.4
20.2 20.7 20.7 |
15.6
20.7 20.7 20.7 |
16.9
20.7 20.7 20.7 |
19.3
20.7 20.7 20.7 |
10-3/4
|
273.1
|
5.0
7.0 10.0 13.0 |
4.6
6.5 9.2 12.0 |
5.4
7.5 10.8 14.0 |
9.0
12.9 18.1 20.7 |
10.1
13.9 19.9 20.7 |
11.2
15.7 20.7 20.7 |
12.1
17.0 20.7 20.7 |
12.9
18.1 20.7 20.7 |
14.0
19.6 20.7 20.7 |
15.4
20.7 20.7 20.7 |
17.3
20.7 20.7 20.7 |
12-3/4
|
323.9
|
5.0
7.0 10.0 14.0 |
3.9
5.5 7.8 10.9 |
4.5
6.4 9.1 12.7 |
7.6
10.7 15.2 20.7 |
8.4
11.8 16.8 20.7 |
9.4
13.2 18.9 20.7 |
10.2
14.3 20.5 20.7 |
10.9
15.2 20.7 20.7 |
11.8
16.5 20.7 20.7 |
12.7
17.8 20.7 20.7 |
14.6
20.4 20.7 20.7 |
|
(325.0)
|
5.0
7.0 10.0 14.0 |
3.9
5.4 7.8 10.9 |
4.5
6.3 9.0 12.7 |
7.6
10.6 15.2 20.7 |
8.4
11.7 16.7 20.7 |
9.4
13.2 18.8 20.7 |
10.2
14.3 20.4 20.7 |
10.9
15.2 20.7 20.7 |
11.8
16.5 20.7 20.7 |
12.7
17.8 20.7 20.7 |
14.5
20.3 20.7 20.7 |
13-3/8
|
339.7
|
5.0
8.0 12.0 16.0 |
3.7
5.9 8.9 11.9 |
4.3
6.9 10.4 13.8 |
7.3
11.6 17.4 20.7 |
8.0
12.8 19.2 20.7 |
9.0
14.4 20.7 20.7 |
9.8
15.6 20.7 20.7 |
10.4
16.6 20.7 20.7 |
11.3
18.0 20.7 20.7 |
12.1
19.4 20.7 20.7 |
13.9
20.7 20.7 20.7 |
14
|
355.6
|
5.0
8.0 12.0 16.0 |
4.3
5.7 8.5 11.3 |
5.0
6.6 9.9 13.2 |
8.3
11.1 16.6 20.7 |
9.2
12.2 18.4 20.7 |
10.3
13.8 20.7 20.7 |
11.2
14.9 20.7 20.7 |
11.2
14.9 20.7 20.7 |
12.9
17.2 20.7 20.7 |
13.9
18.6 20.7 20.7 |
15.9
20.7 20.7 20.7 |
|
(377.0)
|
5.0
8.0 12.0 16.0 |
4.0
5.3 8.0 10.7 |
4.7
6.2 9.4 12.5 |
7.8
10.5 15.7 20.7 |
8.6
11.5 17.3 20.7 |
9.7
13.0 19.5 20.7 |
10.6
14.1 20.7 20.7 |
11.2
15.0 20.7 20.7 |
12.2
16.2 20.7 20.7 |
13.1
17.5 20.7 20.7 |
15.0
20.0 20.7 20.7 |
16
|
406.4
|
6.0
8.0 12.0 16.0 19.1 25.4 |
3.7
5.0 7.4 9.9 11.7 15.5 |
4.3
5.8 8.7 11.6 13.6 18.1 |
7.3
9.7 14.6 19.6 20.7 |
8.0
10.7 16.1 20.7 20.7 |
9.0
12.0 18.1 20.7 20.7 |
9.8
13.1 19.6 20.7 20.7 |
10.4
13.9 20.7 20.7 20.7 |
11.3
15.1 20.7 20.7 20.7 |
12.2
16.2 20.7 20.7 20.7 |
13.9
18.6 20.7 20.7 20.7 |
|
(426.0)
|
6.0
8.0 12.0 16.0 19.1 25.4 |
3.5
4.7 7.1 9.5 11.3 15.0 |
4.1
5.5 8.3 11.0 13.2 17.5 |
6.9
9.3 13.9 18.5 20.7 |
7.7
10.2 15.3 20.4 20.7 |
8.6
11.5 17.2 20.7 20.7 |
9.3
12.5 18.7 20.7 20.7 |
9.9
13.2 19.9 20.7 20.7 |
10.8
14.4 20.7 20.7 20.7 |
11.6
15.5 20.7 20.7 20.7 |
13.3
17.7 20.7 20.7 20.7 |
18
|
457.0
|
6.0
8.0 12.0 16.0 22.2 25.4 |
3.3
4.4 6.6 8.8 12.1 13.8 |
3.9
5.1 7.7 10.3 14.0 16.1 |
6.5
8.6 12.9 17.3 20.7 |
7.1
9.5 14.3 19.0 20.7 |
8.0
10.7 16.1 20.7 20.7 |
8.7
11.6 17.4 20.7 20.7 |
9.3
12.4 18.5 20.7 20.7 |
10.0
13.4 20.1 20.7 20.7 |
10.8
14.4 20.7 20.7 20.7 |
12.4
16.5 20.7 20.7 20.7 |
20
|
508.0
|
6.0
8.0 12.0 16.0 22.2 28.6 |
3.0
4.0 6.0 7.9 9.3 11.0 14.2 |
3.5
4.6 6.9 9.3 10.9 12.8 16.6 |
6.2
8.2 12.3 16.4 19.6 20.7 20.7 |
6.8
9.1 13.6 18.1 20.7 20.7 20.7 |
7.7
10.2 15.3 20.4 20.7 20.7 20.7 |
8.3
11.1 16.6 20.7 20.7 20.7 |
8.8
11.8 17.6 20.7 20.7 20.7 |
9.6
12.8 19.1 20.7 20.7 20.7 |
10.3
13.7 20.6 20.7 20.7 20.7 |
11.8
15.7 20.7 20.7 20.7 20.7 |
|
(529.0)
|
6.0
9.0 12.0 14.0 16.0 19.1 22.2 28.6 |
2.9
1.3 5.7 6.7 7.6 9.1 10.6 13.6 |
3.3
5.0 6.7 7.8 8.9 10.6 12.3 15.9 |
5.9
8.9 11.8 13.8 15.8 18.8 20.7 20.7 |
6.5
9.8 13.1 15.2 17.4 20.7 20.7 20.7 |
7.3
11.0 14.7 17.1 19.6 20.7 20.7 20.7 |
8.0
11.9 15.9 18.6 20.7 20.7 20.7 |
8.5
12.7 16.9 19.8 20.7 20.7 20.7 |
9.2
13.8 18.4 20.7 20.7 20.7 20.7 |
9.9
14.9 19.8 20.7 20.7 20.7 20.7 |
11.3
17.0 20.7 20.7 20.7 20.7 20.7 |
注:1、此表是GB/T9711-1997和APISL标准给出的最低(标准)试验压力,表中未列出的钢级,管径和壁厚的钢管的最低试验压力按下式计算并考虑标准对最高试验压力的限制,当采用GB/T9711.2-1999jf,除另有协议外,S中的系数为95%, 并规定D≤406.4mm,最大压力为50MPa;D>406.4mm,最大压力为25M Pa。
式中:P-静水压试验压力(MPa);S-标准规定最小总伸长应力(Rt10.5MPa)乘以标准所给系数;T-钢管壁厚(mm);D-钢管外径(mm)。 2、L210、L245钢级D≤48.3mm钢管的试验压力是给定的。 其余外径和心中壁厚钢试验压力是按注1的公式计算的。 3、按GB/T3091-2001生产的钢管应逐根进行水压试验,试验压力应符合表一规定。 表一
|
